External Identities is a new public preview feature of Azure AD which allows external users to authenticate with a non-Microsoft account such as their Google or Facebook identity. This has been available in Azure AD B2C for some time, but that solution is really targetted at highly customised applications with potentially millions of users. External Identities opens up that idea to you ordinary Azure AD tenant so that any SAML or WS-Fed IdP can be used. You are essentially federating Azure AD with the external IdP, not a million miles off in construct to how you might federate your Active Directory Domain Services domains to trust others.
In this blog, I will go through the admin process of enabling this for Google, then demonstrate the user experience when using Microsoft Teams. I will create a second and third blog on External Identities covering the process for Facebook then a custom IdP.
Prerequisite: Google Web App Client ID and Secret

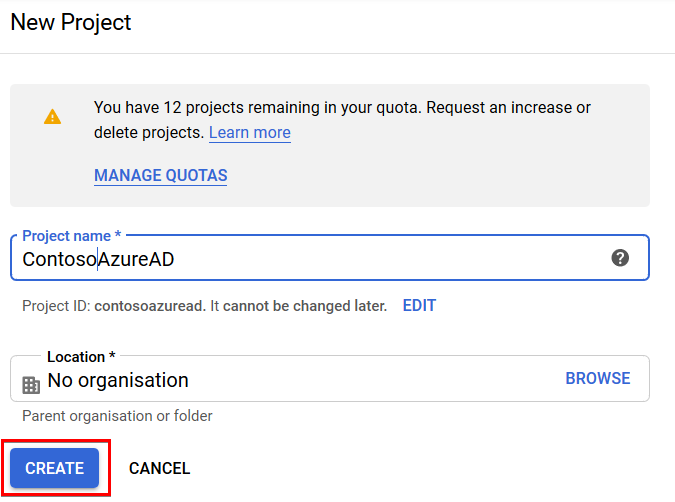

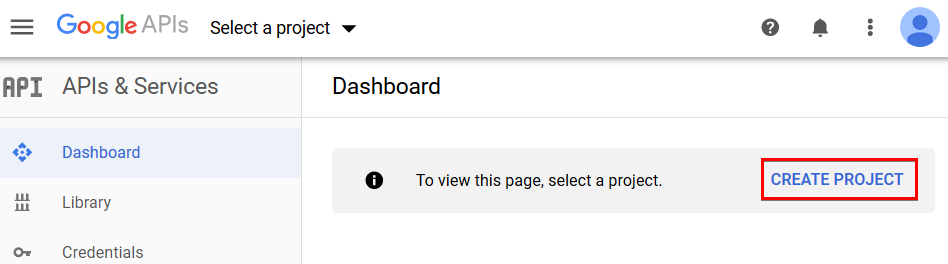

1. You’ll need a Google API client ID and secret before we can do anything in Azure AD. Visit console.developers.google.com with a Google account and create a project. It’s recommended you use a shared account for your tenant’s administration rather than a personal one and give the project a name distinguishable for future reference.
2. You are redirected into your project, and from here navigate to APIs & Services > OAuth consent screen and choose a User Type of External, then click create.

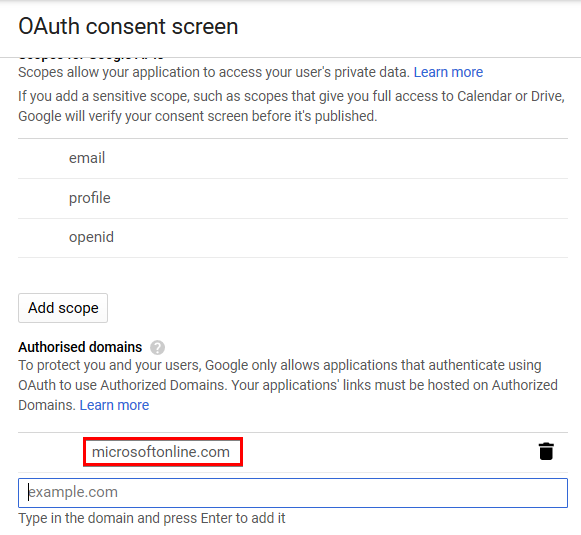

3. You only need to fill out the Application name and Authorised domains on the following screen. The application name can be anything but the domain must be microsoftonline.com. You may also want to review the token grant rate which by default allows for 10,000/day. Save the settings once filled in.

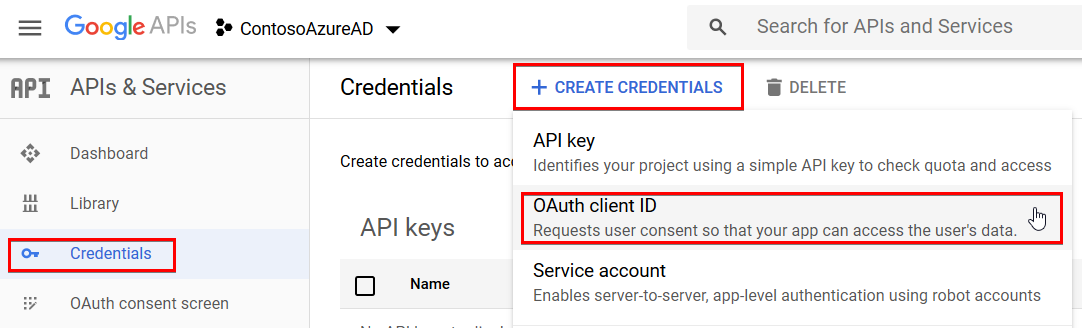

4. Navigate to Credentials on the left-hand pane then + Create Credentials. We want to create an OAuth client ID.

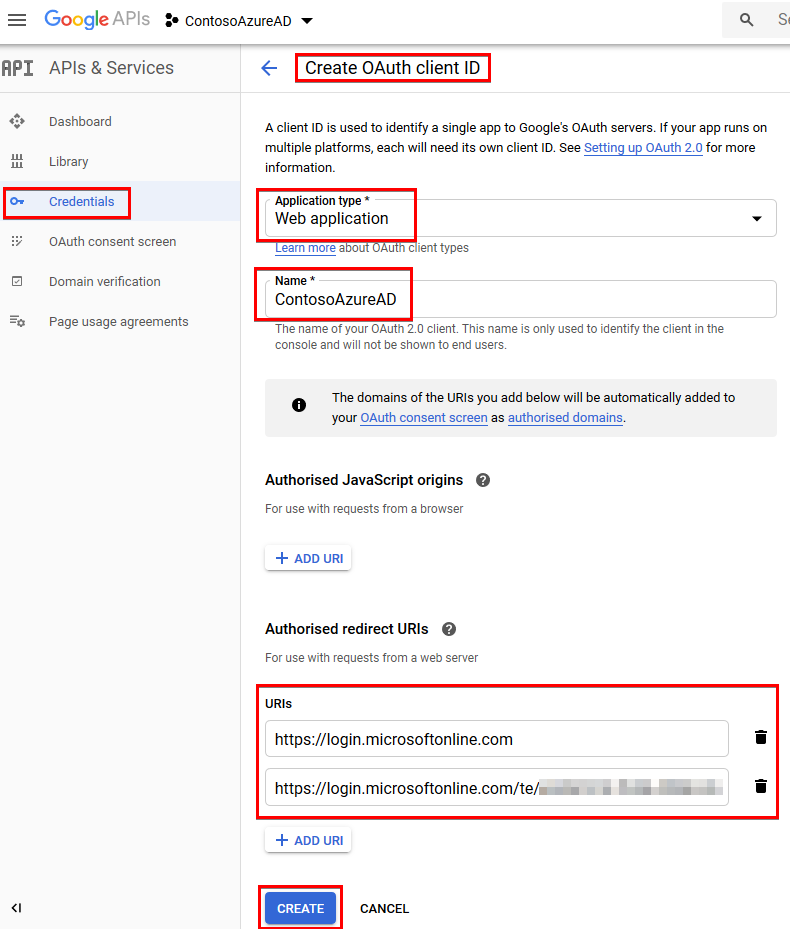

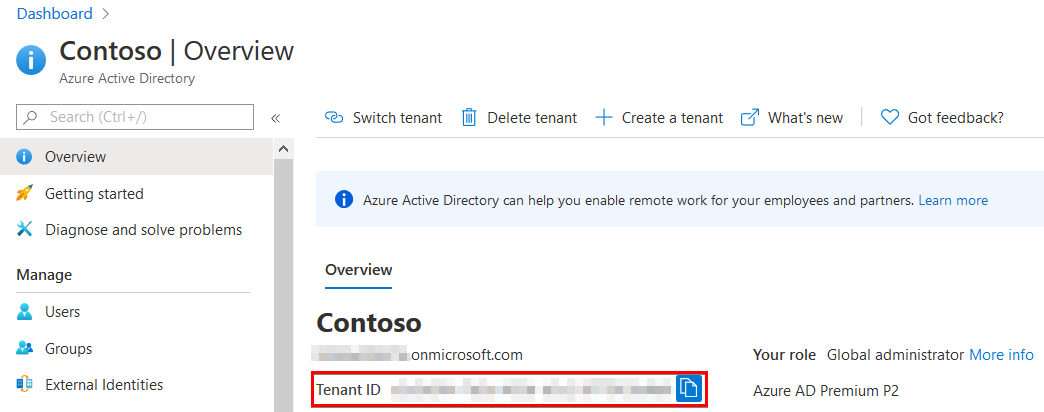

5. On the client ID page, our application type is going to be a web application and we need to add in the following authorised redirect URIs then choose create. Note you easily copy your AAD tenant ID from the Overview page of Azure AD in the Azure portal (aad.portal.azure.com/#blade/Microsoft_AAD_IAM/ActiveDirectoryMenuBlade/Overview)
- https://login.microsoftonline.com
- https://login.microsoftonline.com/te/your-AAD-tenant-ID/oauth2/authresp

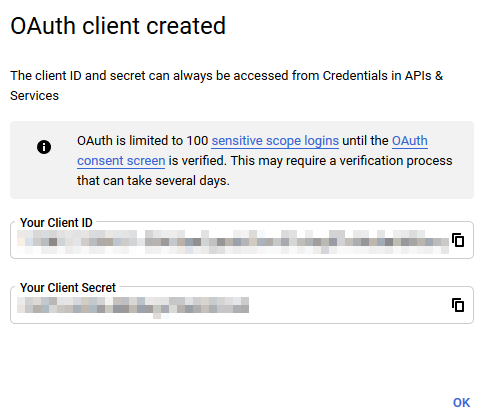

7. You’ll be presented with the client ID (ending apps.googleusercontent.com) and secret (password). Save these as you’ll need them to configure Azure AD. You can retrieve them later from the Google APIs console just by going back into the web application we created.
Configure Azure AD

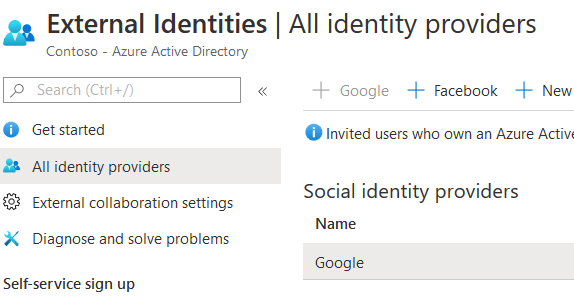

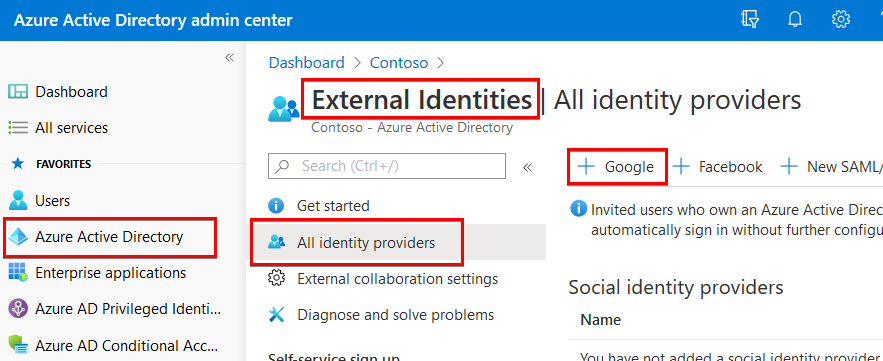

1. In Azure Active Directory, navigate to External Identities > All identity providers > + Google (aad.portal.azure.com/#blade/Microsoft_AAD_IAM/CompanyRelationshipsMenuBlade/IdentityProviders)

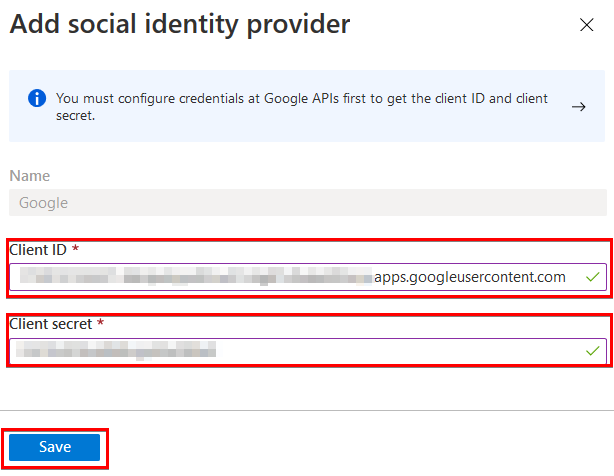

2. Enter the client ID and secret you created earlier and choose to save. This adds Google as a social identity provider. You can remove it, if required later, from this same page and clicking …
User Experience
So what benefit does this bring to the external user? I’ll demonstrate this using Microsoft Teams.
Firstly, let’s go through the experience of an unsupported external identity: a Yahoo Mail user has been invited to join a Team. This uses Azure B2B to create a guest user account for the user.

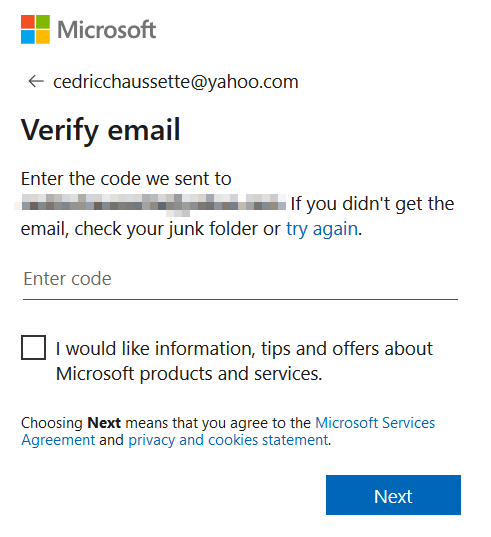

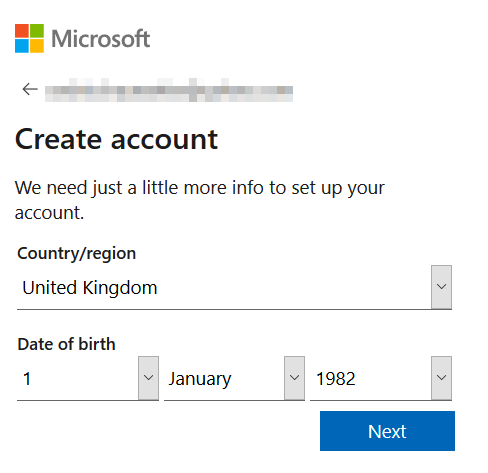

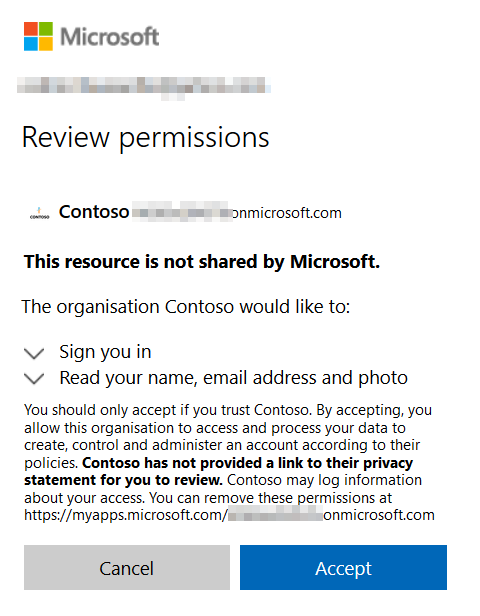

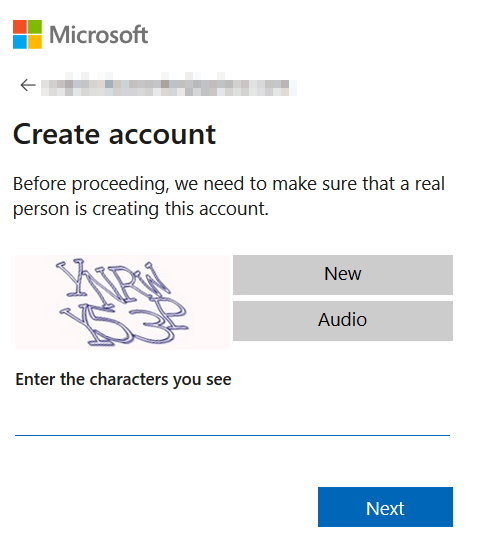

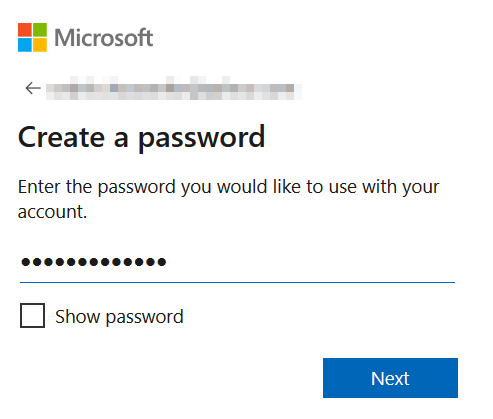

The user follows the invitation email link and they are prompted to create a Microsoft account (this is Microsoft’s consumer account; not an Azure AD account) via signup.live.com, assuming they do not already have one. They can use the original email address (i.e. they don’t need to make one ending in yourdomain.com or microsoft.com), but need to provide a password and details such as their country/region and birthday. Then they need to verify the account with a code sent to their email address. They will probably need to go through a captcha too, then approve the app permissions. Finally, they’ll get in.

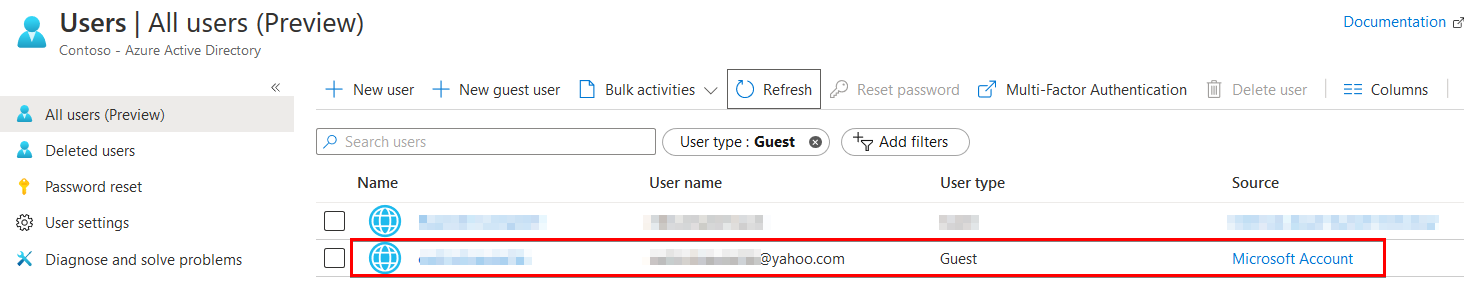

In Azure AD, an administrator can see the user as a guest.
Now the supported external identity: a Google user has been invited after you followed the earlier steps to add Google as an Azure AD supported External Identity social identity provider.

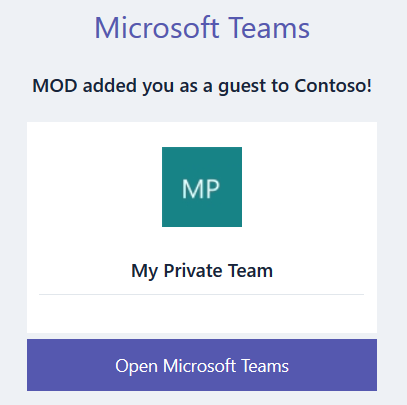

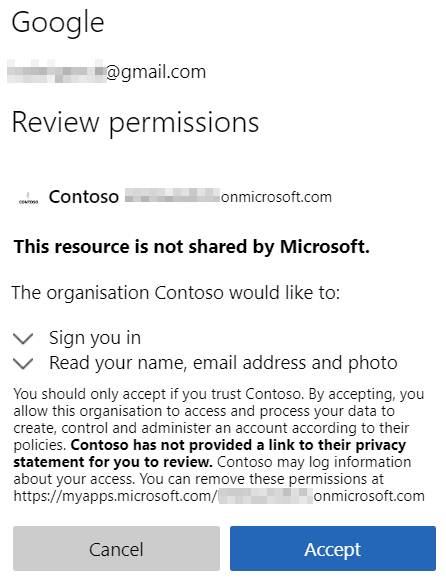

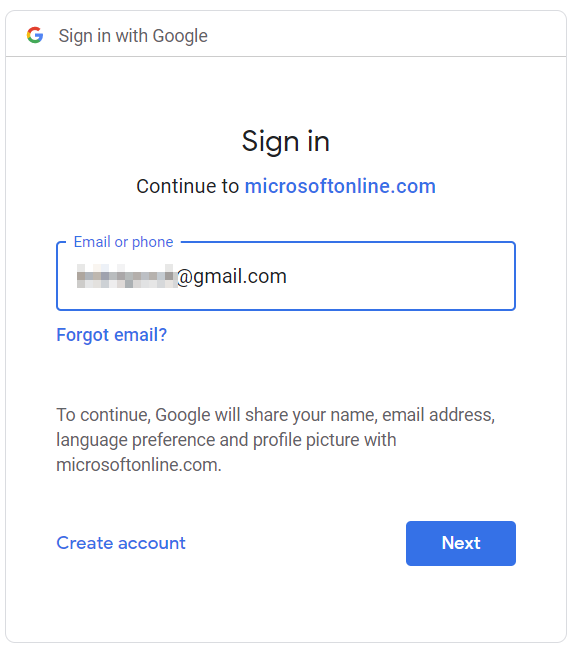

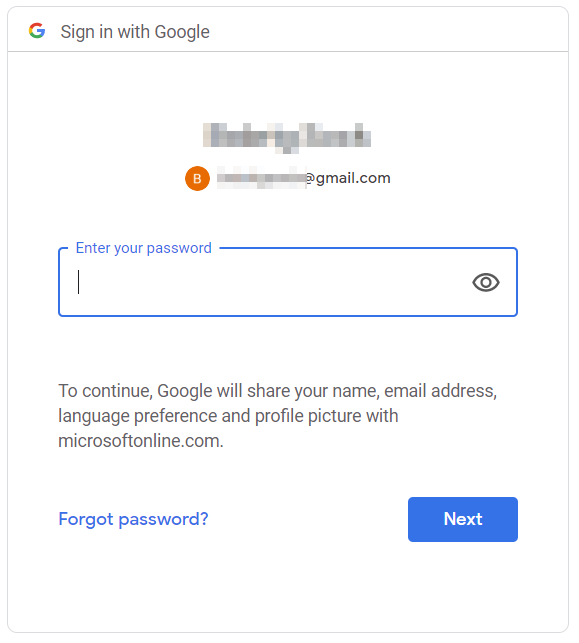

The user follows the invitation email link and they are prompted to log in. The link in the email to Open Microsoft Teams points originally to login.microsoftonline.com but as the invite was sent to a Google user, it redirects to accounts.google.com for authentication. They need to give the app permissions, then they’re in.
How much easier was that!?

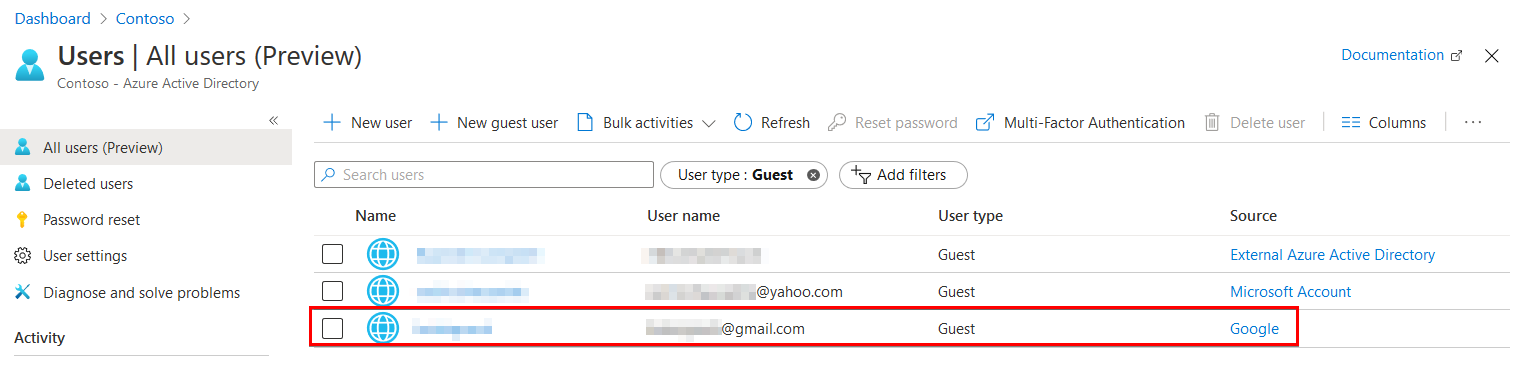

In Azure AD, the user is a guest, and note that the source is Google, rather than the Microsoft Account our Yahoo user had to create.
As the user experience for account creation improves and improves in consumer applications, we must continue to improve it for business applications that use Azure AD too. External Identities give you the same authenticated user security as guest accounts but without the overhead of an additional account for that guest to manage.
